Operating Current: : ≤400mA
Working : continue
Wavelength : 980nm
|
|

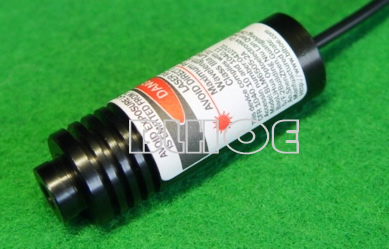

Product Name : laser module |
| Model NO. : BLM98250 | |
| SN : D980C80AC20-60L3 | |
| Operating Voltage : DC3～6V | |
| Operating Current: : ≤400mA |
|
Working : continue |
|
Wavelength : 980nm |
|
| Output Power : 80mw(class3b) | |
| Stability : ≤10% | |
| Life : ≥5000h | |
| Working temperature : -20～50℃ | |
| Storage temperature : -40～80℃ | |
| Beam Shape : Dot | |
| Beam Size: ≤8mm @10m | |
| Divergence : ≤0.2mrad | |
| coaxiality : ≤3° | |
| Size : D20*L60mm | |
| Pin of power : 300mm | |
| Others : | |
| Main use : Infrared Laser Aiming Device of weapon,Infrared Laser emit,Simulation gun shooting,optical net for safeguard,etc.,special products could be customized | |
