Operating Current: : ≤50mA
Working : continue/pulse
Wavelength : 405nm
|
|

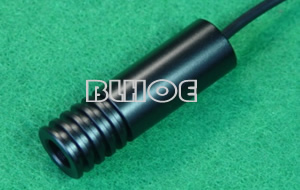

Product Name : laser module |
| Model NO. : BLM4010 | |
| SN : E405C8BC16-50L6 | |
| Operating Voltage : DC5～12V | |
| Operating Current: : ≤50mA |
|
Working : continue/pulse |
|
Wavelength : 405nm |
|
| Output Power : 8mw(class3b) | |
| Stability : ≤10% | |
| Life : ≥8000h | |
| Working temperature : -10～30℃ | |
| Storage temperature : -40～80℃ | |
| Beam Shape : Elliptic | |
| Beam Size: ≤8*10mm @10m | |
| Divergence : ≤0.4mrad | |
| coaxiality : ≤3° | |
| Size : D16*L50mm | |
| Pin of power : 300mm | |
| Others : Frequency Modulation≤100kHZ,pulse level≥2Vp-p | |
| Main use : | |
