Operating Current: : ≤50mA
Working : continue
Wavelength : 635nm
|
|

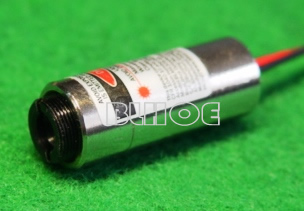

Product Name : laser module |
| Model NO. : BLM6305 | |
| SN : E635C3BC12-30L3 | |
| Operating Voltage : DC3～6V | |
| Operating Current: : ≤50mA |
|
Working : continue |
|
Wavelength : 635nm |
|
| Output Power : 3mw(class3a) | |
| Stability : ≤5% | |
| Life : ≥5000h | |
| Working temperature : -10～40℃ | |
| Storage temperature : -40～80℃ | |
| Beam Shape : Elliptic | |
| Beam Size: ≤5*10mm @10m | |
| Divergence : ≤0.4mrad | |
| coaxiality : ≤3° | |
| Size : D12*L30mm | |
| Pin of power : 180mm | |
| Others : | |
| Main use : Mine,tunnel safeguard, laser mapping, Swing level, Laser Level tool,Laser Aiming Device,medical treatment,etc., Special products could be customized | |
