Operating Current: : ≤50mA
Working : continue/pulse
Wavelength : 635nm
|
|

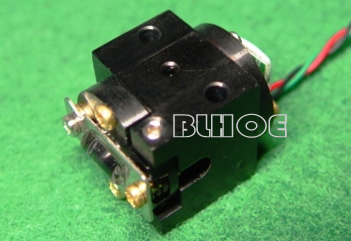

Product Name : laser module |
| Model NO. : BLM6305 | |
| SN : L635P3AA20-25L6 | |
| Operating Voltage : DC4.5～6V | |
| Operating Current: : ≤50mA |
|
Working : continue/pulse |
|
Wavelength : 635nm |
|
| Output Power : 3mw(class3a) | |
| Stability : ≤5% | |
| Life : ≥8000h | |
| Working temperature : -10～40℃ | |
| Storage temperature : -40～80℃ | |
| Beam Shape : line | |
| Beam Size: ≤2mm @5m | |
| Divergence : θ//≤0.2mrad θ⊥≥120° | |
| coaxiality : ≤0.2° | |
| Size : 20*20*L25mm | |
| Pin of power : 100mm | |
| Others : | |
| Main use : exact measure equipment such as automatic-level, line marking instrument,etc.,pecial needs can be customized | |
